Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Hong Kong
OEM or ZWD
CE ROHS
2-8 working days
2

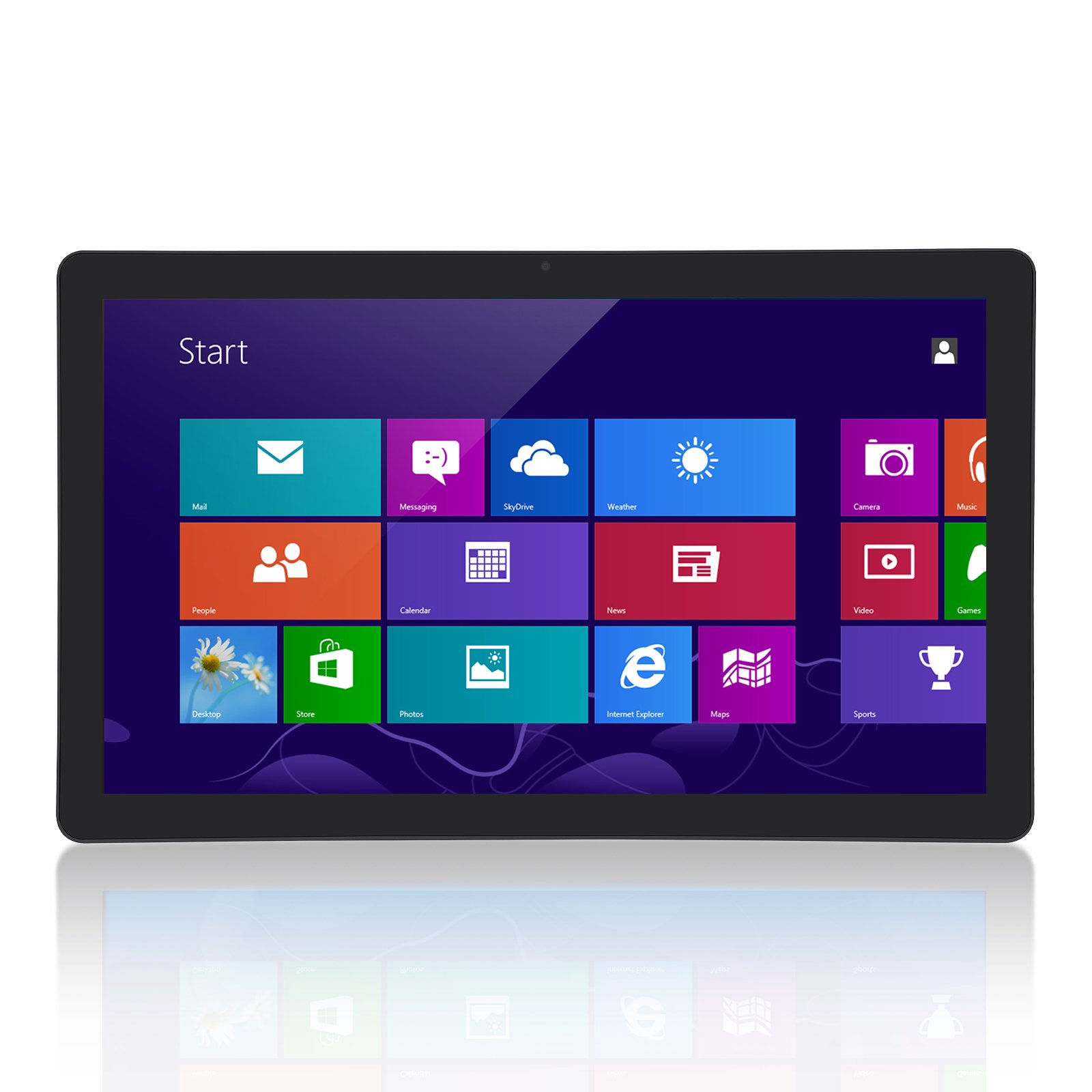

| Screen Size | 10.1 inch, 14 inch, 15.6 inch, 18.5 inch, 21.5 inch, 23.8 inch |
|---|---|
| Refresh rate | 60HZ |
| Resolution | 1920×1080, 1280(RGB)×800 （10.1inch） |
| colour | black |
| Interface Type | audio interface*1 (2x30mW), Mini HDMI interface, power interface DC 12V(5.5*2.1), power switch*1, SD card slot, USB 2.0 interface, USB 2.0 interface*1 (Touch Interface) |
| Temperature | 0℃～40℃ |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-755-28193671
| Display screen parameters | Panel Size | 15.6-inch | |||
| Back-light Type | LED | ||||
| Panel Type | IPS（NV156FHM-N22） | ||||
| Resolution | 1920(RGB)×1080, FHD | ||||
| Aspect Ratio | 16:9 | ||||
| Refresh rate | 60Hz | ||||
| Color Quantity | 262K , 45% NTSC | ||||
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) | ||||
| Pixel layout | RGB vertical stripe | ||||
| Contrast ratio | 1200:1 | ||||
| Optical mode | ADS， Constant black display, transmissive | ||||
| Response Time | 5ms | ||||
| Luminance | 300cd/m2 | ||||
| Working Temperature | 0 ~ 50 °C | ||||
| Storage Temperature | -20 ~ 60 °C | ||||

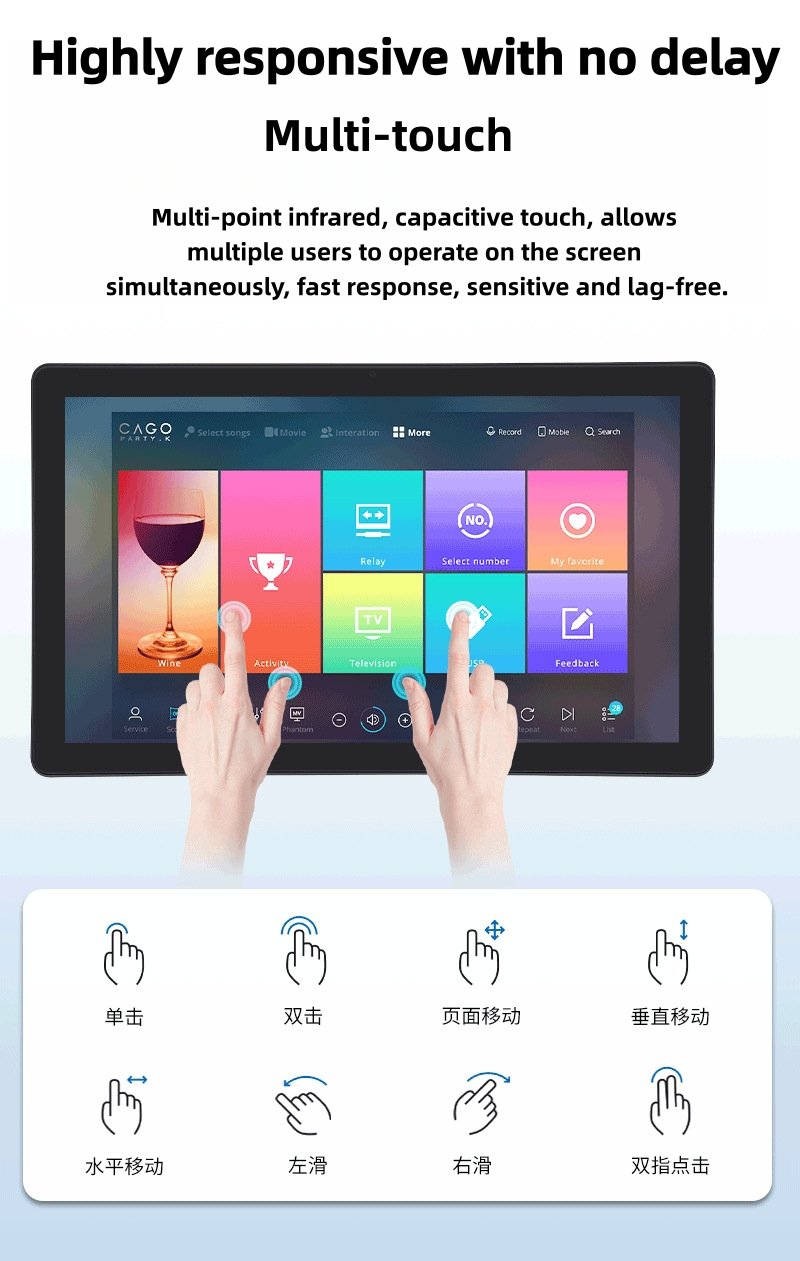

| Touch screen parameters | Touch type | G+G capacitor ten point touch screen | |||
| Input method | Use fingers or touch pens to make contact with conductors for operation | ||||
| Service life | >50 million times | ||||
| transmittance | ＞86% | ||||
| Surface hardness | ＞6H | ||||
| Working voltage | 5.0V | ||||
| sound | speaker | Built in speakers 2x 3w | |||
| video | video format | Full format 720P and 1080P (30fps) video playback: MKV, MOV, MPG, FLV, AVI, VOB, MP4, 3GP | |||
| music | audio format | Full format audio playback：MP3、WMA、OGG、APE、FLAC | |||
| image | image format | support JPEG、BMP、GIF、PNG | |||
| eBOOK | TXT | ||||
| OSD language | Menu language | Multilingual (Chinese/English/German/French/Japanese/Russian/Spanish/Italian/Portuguese) | |||
| Other functions | playback function | Auto play upon startup; The display screen automatically plays multimedia content according to the predetermined startup working time, and displays relevant graphic and textual information according to the preset screen template. The supported playback methods include: 1)Mixing, video, music, images, e-books 2)Timed on/off time playback 3)Loop playback |
|||
| Automatic copying | User specified folder with password copy. After entering the password, the contents of the folder will be automatically copied, with the same name overwritten The user specified folder is automatically updated, and the contents of the folder are deleted first and then copied Automatic update of root directory content Specify automatic file updates Support external USB/SD card copying of memory or memory copying between external USB/SD cards |
||||
| Auto play upon startup | Mixing, video, music, images, e-books | ||||
| POWER LOGO | One or more image logos | ||||
| Breakpoint memory playback | Support video breakpoint memory playback | ||||
| clock | Supports clock, calendar, lunar and solar calendar display, timed on/off, alarm clock | ||||
| image playback | Support slide show playback, screen rotation and scaling, music background, hardware acceleration, 20 million pixels per second | ||||
| Folder playback | Circular playback of specified folders (mixed, video, music, pictures, etc. Press the button or remote control to specify the playback of different folder contents |
||||
| RTC real-time clock | support | ||||
| scheduled power on | support | ||||
| System upgrade | The application can be updated in the following two ways 1)Connect to computer upgrade mode 2)+USB and SD card import upgrade file mode |
||||
| standby power consumption | ≤ 12W (without speaker/LCD screen/backlight inverter/USB device) around 800MA | ||||
| Operating Temperature | 0℃～40℃ | ||||
| Operating Humidity | 10％～90％，without condensation | ||||
| Storage temperature | ‘-20℃～60℃，Recommended temperature range: 5℃ to 35℃ | ||||

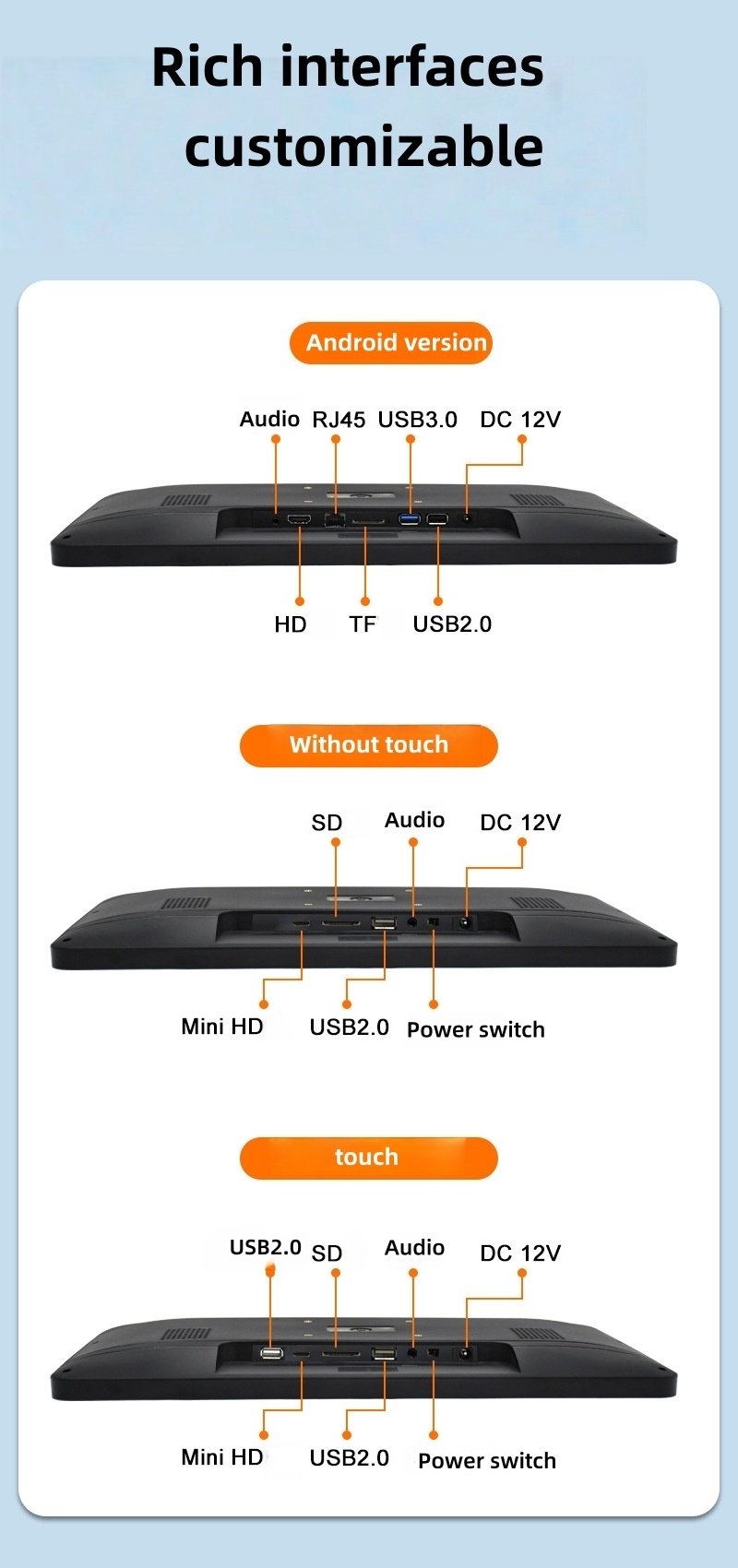

| interface | USB 2.0 interface | 1 (Touch Interface) | |||
| Mini HDMI interface | 1 | ||||
| SD card slot | 1 (Supports up to 32GB) | ||||
| USB 2.0 interface | 1 (480Mbps high-speed transmission) （Note: The USB interface does not support touch and is used for multimedia） | ||||
| audio interface | 1 (2x30mW) | ||||
| power switch | 1 | ||||
| power interface | DC 12V(5.5*2.1) | ||||
| accessories | power adapter | 1 piece, specification: AC100-240V 50/60HZ 12V2.6A | |||
| power line | 1 piece | ||||
| remote control | 1 | ||||
| Instruction Manual | 1 | ||||
| USB 2.0 cable | 1(with touch） | ||||
| Capacitive pen | 1 unit | ||||
1) Q:What is the minimum order?
A: welcome to take a sample for you check quality and function, we mainly deals with wholesale deals.
2) Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, Paypal, Western Union.
3) Q:How long is the warranty time for your products?
A:Our officially promised warranty time is one year for the panel, three years for the accessory.
4) Q:what’s the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to
manufacture the machines.but mostly ,the shipment time is 3-8 working days after
delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly
Suggest Express by sea and Air freight, when Air freight and by Sea shipping for
Bulk order >100KG.As for detailed cost, it depends on your final order.
5) Q:Do you give any discount ?
A:I’ll surely try my best to help you get those by the best price and good
service at the same time.
6 ) Q:I would like to ask you if it’s possible to have my logo on the product.
A:Sure, it is available for customzied your LOGO on the monitor, as well as the packing, We hope you know that our company
perfectly support customized logo service offered by us.
7) What is your company’s main product?
A:Our main product is LCD/LED Monitor, Touch screen monitor,CCTV monitor, AD player included with android tablet and digital photo
frame.
